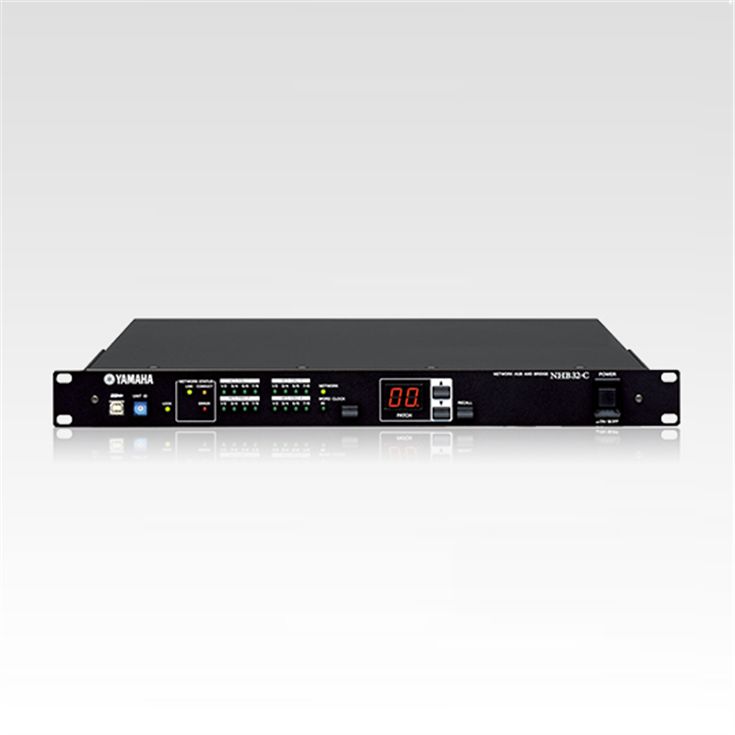

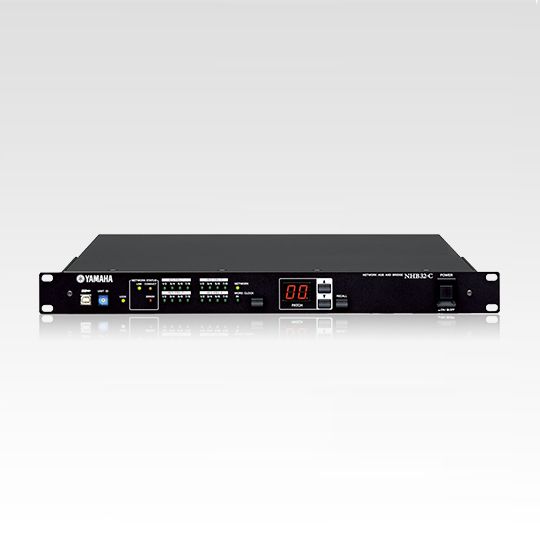

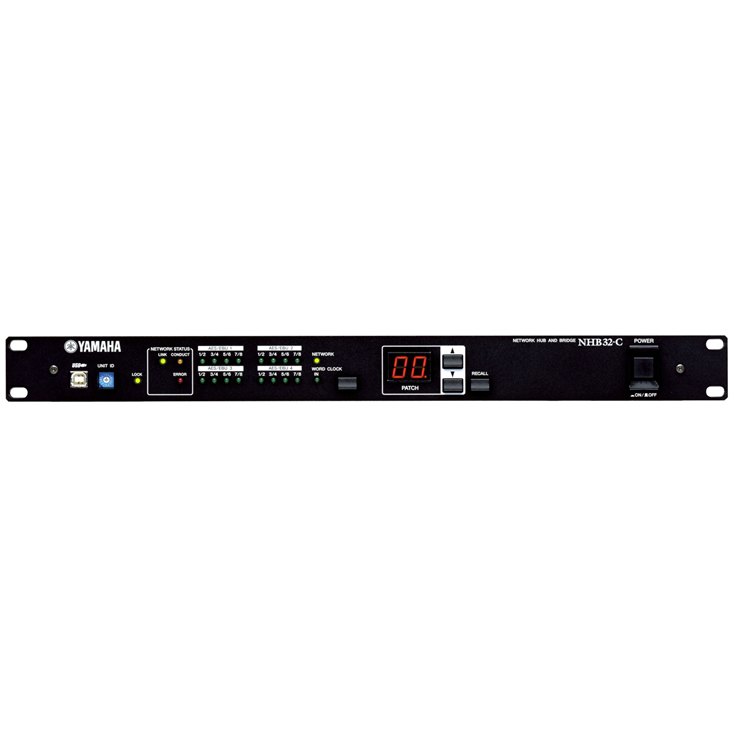

NHB32-C Network Hub and Bridge Discontinued
32 input/32 output channel interface unit for CobraNet™ and AES/EBU connections.
The NHB32-C is a 32 input/32 output channel interface unit for CobraNet™ and AES/EBU connections.
Use the NHB32-C to transfer control signals for the ACU16-C amp control unit, MIDI devices, or remote head amplifier (AD8HR).*
* Only one control type can be used at a time.
Product Information
NHB32-C Network Hub and Bridge Discontinued
A 32-channel AES/EBU and CobraNet™ interface that facilitates construction of up to 64-channel audio and control networks with a LAN infrastructure.
- A single NHB32-C unit can support up to 32-channels of digital audio I/O, and one control signal I/O.
- Four separate 8-channel AES/EBU input/output terminals.
- CobraNet™ transfers high-quality 20-bit or 24-bit 48 kHz digital audio over four bundle paths in real time.
- MIDI, head amp remote (AD8HR, AD824) and amplifier control.
- NetworkAmp Manager software allows central control of both audio and control signals.
- Up to eight NHB32-C units can be networked, with each unit transferring and receiving four bundles, and 64 channels of digital audio can be received from any ACU16-C or NHB32-C on the network via CobraNet™.
- A networked system with ACU16-C and NHB32-C units is capable of handling up to 64 channels of digital audio.
- Multicast and unicast modes can be used in combination to optimize bandwidth.
- Primary and secondary CobraNet™ ports are built-in, providing a redundant network for reliable operation.
