DM7 Series
Go Above and Beyond
More than 30 years since the release of Yamaha’s first digital mixer, the DMP7, the landscape of professional audio has seen a steady progression in technological advancements and innovations that have impacted mixing and recording styles significantly.
DM7 series mixing consoles represent a sizable step forward in this evolution of form, functionality, and flexibility with their intuitive UI, compact design, and comprehensive suite of powerful features that allow them to outperform other mixers in their class in an impressive range of audio environments. From broadcasting, streaming, and music production, to live hybrid events and concert performances, the advanced capabilities of the DM7 series set a new standard in operability and workflow while simultaneously staying true to Yamaha’s sonic tradition of “natural sound”. As the times continue to change, your DM7 will keep you ahead of the curve with a user experience that’s a cut above anything in its class, and sonic performance well beyond the expectations of audiences and engineers alike.
Features
The DM7 series is an innovative digital mixer lineup that not only guarantees unparalleled sound quality, ease of operation, and high reliability to connect engineers, artists, and audiences, but is also highly scalable and flexible enough to adapt according to application. A DM7 setup can take on a variety of configurations depending on the engineer's preferences and can support a wide range of sonic environments.
Applications
Due to their compact yet flexible design, DM7 series mixers can be used in a wide range of audio applications. With their comprehensive functionality, expansion options, and outstanding ease of use, DM7 consoles excel in a truly impressive array of use cases.
Live Sound
Performing Arts Center & Theater
House of Worship
Stadium Areana
Corporate Event
Streaming
Broadcast
Production
Product Information
DM7 Digital Mixing Console
The DM7 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and a 2 x 12” + 1 x 7” multi-touch screen.
- Input mixing channels: 120 mono
- Buses: 48 Mix + 12 Matrix + 2 Stereo
- Display: 12.1" multi-touch screen x 2, 7" multi-touch screen x 1
- Faders: 28 (12 + 12 + 4)

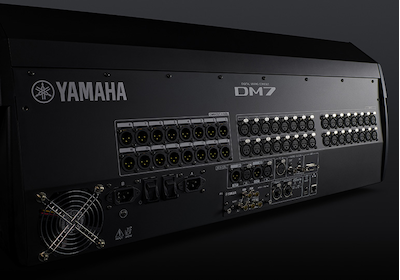

- Analog I/O: 32 inputs / 16 outputs

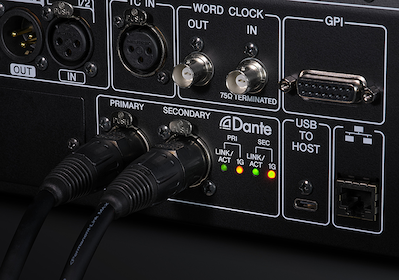

- Dante: 144 in / 144 out
- AES/EBU: 2 in / 2 out (with SRC)
- Slot: PY Slot x 1

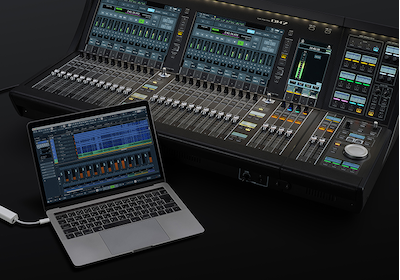

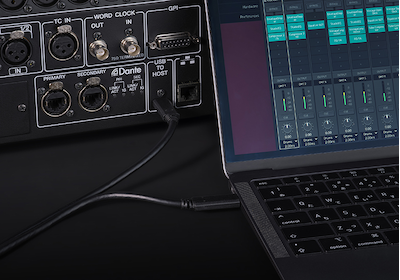

- USB Audio Interface: 18 in / 18 out

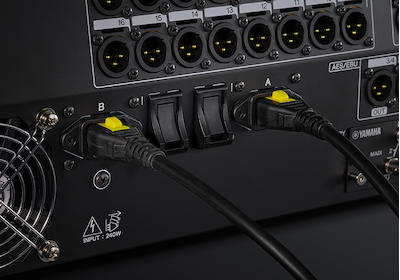

- Power supply: Redundant power supply built-in
- Power consumption: 240 W
- Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3" x 12.8" x 22.2")
- Net Weight: 23.5 kg (51.8 lb)
DM7 Compact Digital Mixing Console
The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
- Input mixing channels: 72 mono
- Buses: 48 Mix + 12 Matrix + 2 Stereo
- Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
- Faders: 16 (12 + 4)
- Analog I/O: 16 inputs / 16 outputs
- Dante: 144 in / 144 out
- AES/EBU: 1 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power supply: Redundant power supply built-in
- Power consumption: 240 W
- Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5" x 12.8" x 22.2")
- Net Weight: 16.5 kg (36.4 lb)

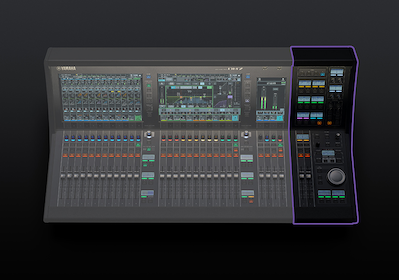

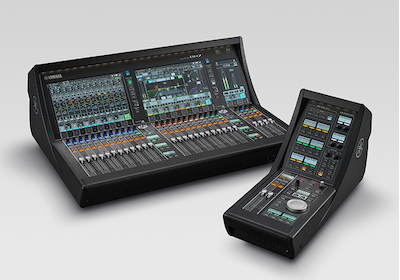

DM7 Control Expansion Controller
The DM7 Control is an expansion controller with a variety of physical control devices that can be used to conveniently control functions for a number of applications, such as User Defined Keys, Scene Memory keys, Monitor Control keys and knobs, and Panner joystick. The Broadcast / Theatre Package is included with the DM7 Control controller. * Side pads not included
- Faders: 2
- User Defined Keys: 16
- User Defined Knobs: 4
- Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
- Monitor Control for Monitor A/B
- Panner: 1
- Jog Wheel: 1
- Dual power supplies (AC INPUT and EXT DC INPUT) - optional PA-700 AC adaptor available for redundancy
- Power consumption: 20 W
- Dimensions (W x H x D): 191 mm x 323 mm x 562 mm (7.6" x 12.8" x 22.2")
- Net Weight: 7 kg (15.5 lb)
Software Package
Broadcast Package (DEK-DM7-BR)
The Broadcast Package (DEK-DM7-BR) is a software package that adds broadcast functionality to the DM7 series.
- Functions: Mix Minus, Fader Cue Release, Back Stop PFL, Audio Follow Video, Source Selection Mix Mode, Loudness Meter, Meter Scale, 5.1 Surround (V1.6 or later)
Theatre Package (DEK-DM7-TH)
The Theatre Package (DEK-DM7-TH) is a software package that adds theater functionality to the DM7 series.
- Functions: 4 Bank EQ/DYN, Actor Library, DCA Preset, DCA Scene Grid, MIDI Output Event on Scene, AFC Image Control (V1.6 or later)
PY Card
PY64-D Audio Interface Card
The PY64-D audio interface card supports the Dante audio network protocol, handling up to 64 input and 64 output channels of 96 kHz/32-bit digital audio. Onboard sample rate conversion allows connection between devices operating at different sampling rates.
- Number of channels: 64 in / 64 out
- Dante: Primary / secondary ports with SRC
- Dimensions (W x H x D): 100 mm x 40 mm x 135 mm (4.0" x 1.6" x 5.3")
- Net eight: 0.3 kg (0.7 lb)
PY64-MD Audio Interface Card

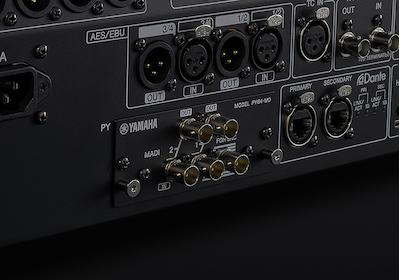

The PY64-MD audio interface card provides MADI connectivity, handling up to 64 input and 64 output channels of 96 kHz / 24-bit digital audio. The onboard sample rate converters allow interconnection between devices operating at different sampling rates.
- Number of Channels: 64 in / 64 out
- MADI input: 2 BNC connectors with SRC (Up to 64 channels on each terminal)
- MADI Output: 2 BNC connectors with SRC (Up to 64 channels on each terminal)
- Dimensions (W x H x D): 100 mm x 40 mm x 141 mm (4.0" x 1.6" x 5.6")
- Net Weight: 0.2 kg (0.5 lb)
PY8-AE Audio Interface Card
The PY8-AE audio interface card provides AES / EBU connectivity, handling up to 8 input and 8 output channels of 96 kHz / 24-bit digital audio. The onboard sample rate converters for the input channels allow connection between devices operating at different sampling rates.
- Number of Channels: 8 in / 8 out
- AES/EBU terminal: D-sub 25-hole chassis (8 in / 8 out)
- Dimensions (W x H x D): 100 mm x 40 mm x 135 mm (4.0" x 1.6" x 5.4")
- Net Weight: 0.2 kg (0.5 lb)
PY-MIDI-GPI Interface Card
The PY-MIDI-GPI interface card provides MIDI and GPI connectivity, equipped with MIDI DIN connectors that can handle up to 5 input and 5 output channels of GPI. The PY-MIDI-GPI extends the scope of host device connections that can be controlled.
- MIDI: IN/OUT (DIN 5 pin)
- GPI: D-sub 15-hole chassis (5 in / 5 out)
- Dimensions (W x H x D): 100 mm x 40 mm x 135 mm (4.0" x 1.6" x 5.4")
- Net Weight: 0.1 kg (0.3 lb)
AC Adaptor for external power supply of DM7 Control
PA-700 AC Adapter
AC adapter for providing redundant power supply for SWP1, SWP2, RSio64-D, and DM7 Control.
- Input power voltage: AC100-240V
- Output power voltage: DC24V
- XLR4-11C type connector
- Dimensions: 139.0(W) x 31.3(H) x 58.2(D) mm *without cables
The colors and finishes shown may vary from those on the actual products.
